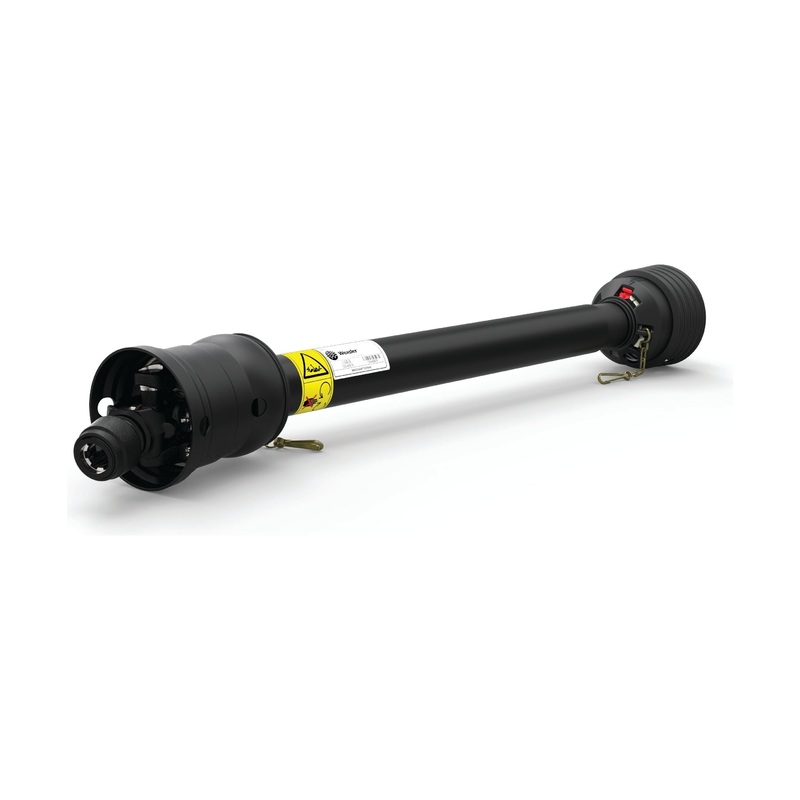

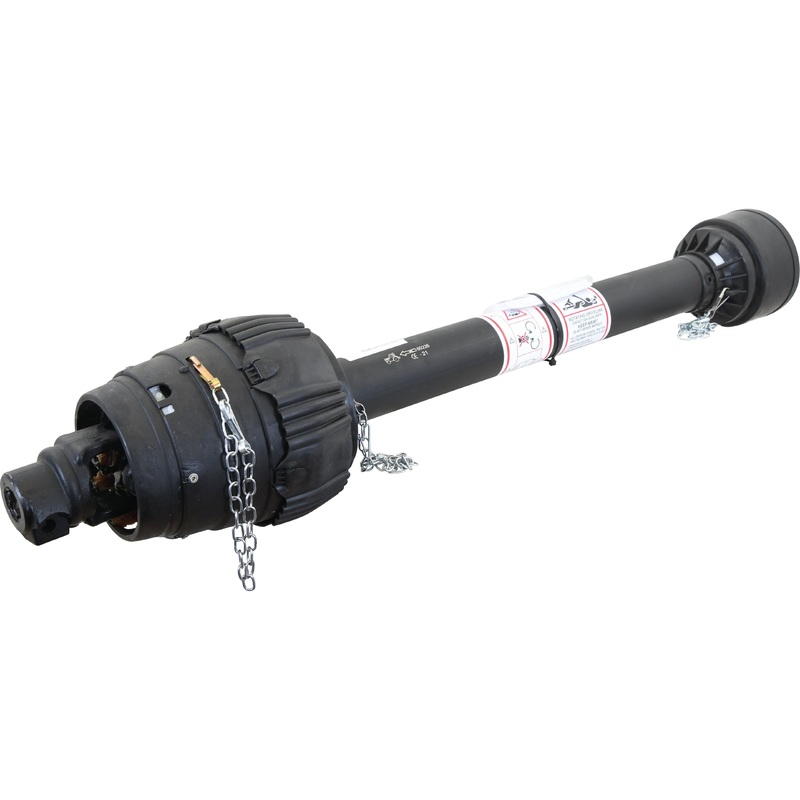

Weasler PTO Shaft – (Lz) Length: 1010mm, 1 3/8” x 6 Spline Q.R. to 1 3/8” x 6 Spline Q.R. – S.39006

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. This high-quality shaft is part of the renowned German Series AW20/W2200, ensuring reliability for your agricultural needs.

Key Features:

• Brand: Weasler
• German Series: AW20/W2200
• Guard Type: Easylock
• HP Rating @ 540RPM: 21 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 16 kW
• Lz Length: 1010 mm
• Total Closed Length: 1210 mm
• Implement End: 1 3/8” x 6 Spline Q.R.
• Tractor End: 1 3/8” x 6 Spline Q.R.
• Torque: 335 – 1240 Nm (Max Torque: 470 Nm)
• Tube Profile: Lemon
• Universal Joint Dimensions: 2
• Reference: 1600-7202-101
• Tariff Code: 8483908990

Compatibility:

This PTO shaft is not associated with any particular make or model, making it a versatile choice for various applications.

Related Products:

Explore our range of related products: 24190, 24192, 4190, 4192, 59605, 59631, 6030, 6031, 6038, 6583, 72447, 115373, 115375, 115396, 118070.

Manufacturer Information:

OEM Fitment Information: Walterscheid 1113089

Upgrade your machinery with the Weasler PTO Shaft, engineered for efficiency and performance in demanding environments.
