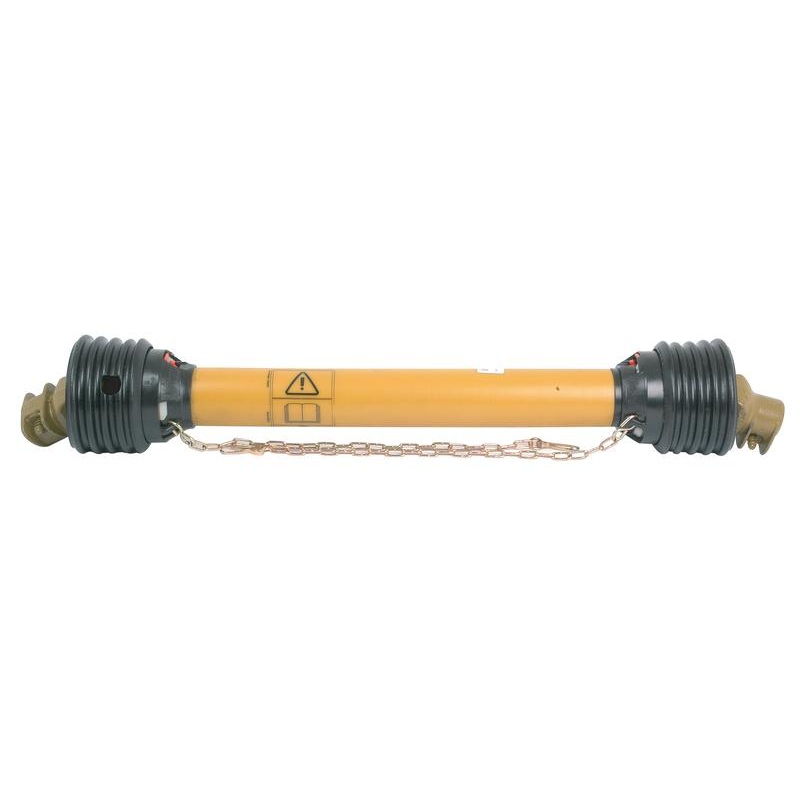

Weasler PTO Shaft – EUCV Wide Angle – One End, (Lz) Length: 1210mm, 1 3/8” x 6 Spline 80 W.A. to 1 3/8” x 6 Spline Q.R. | Sparex Part No.S.39022
Weasler PTO Shaft - EUCV Wide AngleLength: 1210mm | Implement End: 1 3/8'' x 6 Spline Q.R. | Tractor End: 1 3/8'' x 6 Spline 80 W.A.HP Rating @ 540RPM: 36HP | Series: AW21/W2380Product Specifications Brand: Weasler German Series: AW21/W2380 HP Rating @ 540
Category: PTO Shaft
Weasler PTO Shaft – EUCV Wide Angle
Length: 1210mm | Implement End: 1 3/8” x 6 Spline Q.R. | Tractor End: 1 3/8” x 6 Spline 80 W.A.
HP Rating @ 540RPM: 36HP | Series: AW21/W2380
Product Specifications
- Brand: Weasler
- German Series: AW21/W2380
- HP Rating @ 540RPM: 36
- HP Rating Range @ 540RPM: up to 54
- Kilowatt Power Rating @ 540RPM: 26
- Lz Length (mm): 1210
- PTO Series: AW21/W2380
- Reference: 1850-7402-121
- Tariff Code: 8483908990
- Torque (Nm): 780
- Torque Range: 335 – 1240Nm
- Total Closed Length (mm): 1410
- Tube Profile: Lemon
- Tube Ref: OvGA/1G
- Universal Joint Dimensions: 27 x 75 & 24 x 91mm
Related Products
Compatible with part numbers: 2448, 39070, 50694, 50697, 51152, 53507, 59625, 59644, 6048, 6583, 6678, 72448, 115404, 115409, 115431, 115437, 115438, 115439, 115442, 115445.
Compatibility Information
This product is not associated with any particular make or model.
Manufacturer Information
This product is not associated with any particular OEM part number.
