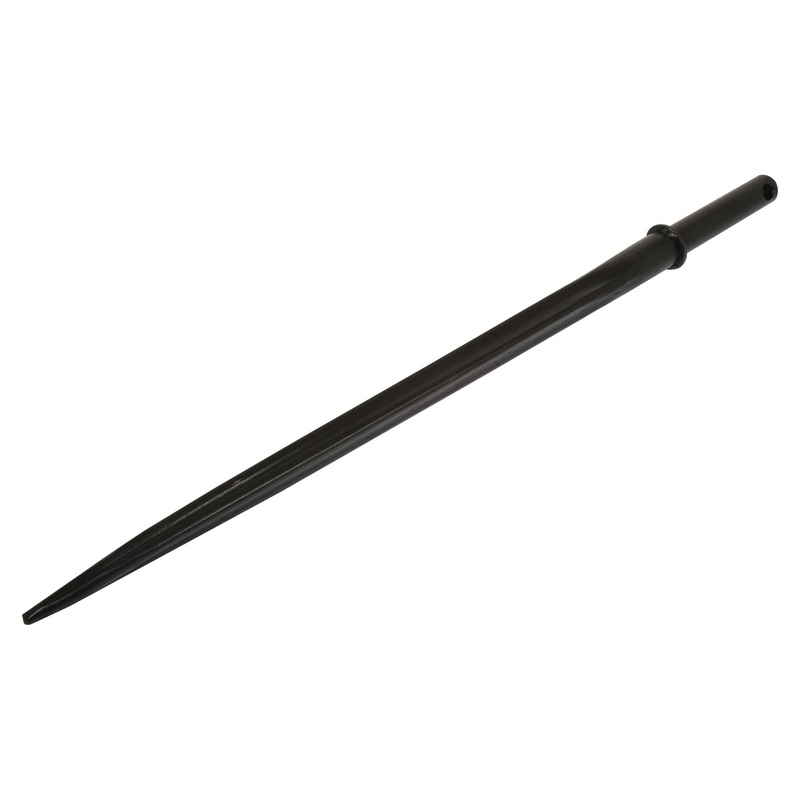

Loader Tine – Straight 800mm, Thread Size: M22 x 1.50 (Square)

Introducing the Loader Tine designed for optimal performance and durability. This straight tine, measuring 800mm in length, is perfect for various applications, particularly with Fendt machinery. With a maximum tine diameter of 36mm and a robust torque capacity of 500Nm, this loader tine is engineered to handle demanding tasks with ease.

Product Features

• Fitting: Conus 1
• Max. Tine Diameter: 36mm
• Brand: SHW
• Colour: Red
• Conus Reference: K001
• Nut Included: Yes (Nut: S.77028)
• Primary OE Reference: 238894130010
• Profile: Square
• Thread Size: M22 x 1.50 (Metric)
• Tine Length: 31 1/2 inches (800mm)
• Type: Straight
• Warning: Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner.

Specifications

• A (mm): 800
• B (mm): 131
• C (mm): N/A
• Maximum Torque (Nm): 500
• Related Products: 1840, 77028
• STD Bush: S.1840
• Tariff Code: 8426990000

Compatibility

This loader tine is suitable for various Fendt models, ensuring a perfect fit and reliable performance.

Upgrade your equipment with the Loader Tine – Straight 800mm and experience enhanced efficiency and strength in your operations.
