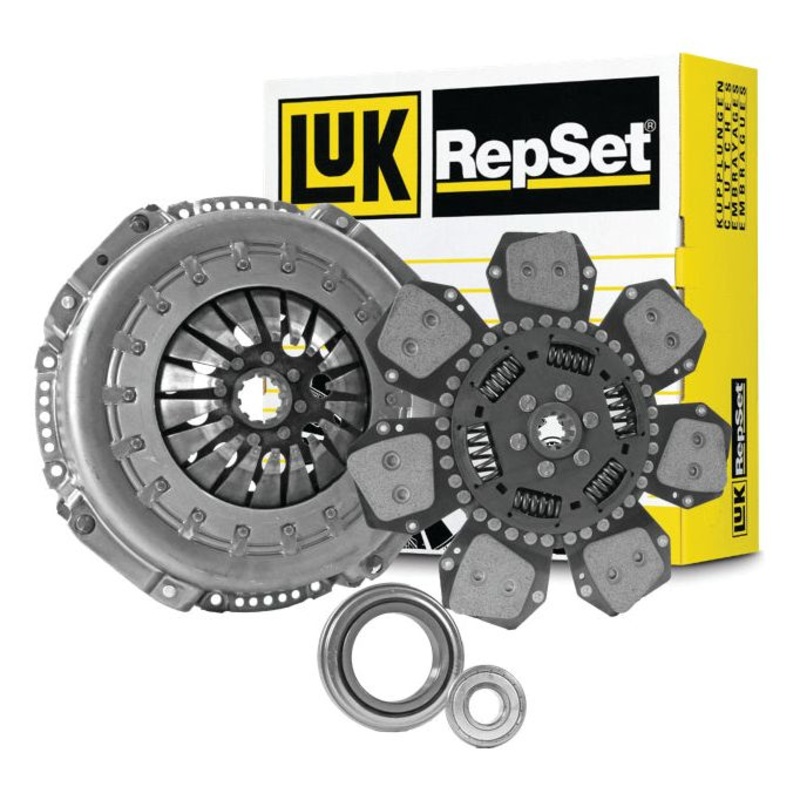

Clutch Kit with Bearings – S.122174

Upgrade your machinery with the Clutch Kit with Bearings – S.122174 from Sparex. This high-quality clutch kit is designed for optimal performance and durability, featuring a dual cover system that ensures reliable operation in demanding conditions.

Product Specifications

• Brand: LUK
• Cover Size: 280/280 mm
• Cover Type: Dual Cover
• Cushion: Without axial cushion
• Dual Cover Control: Independent
• Housing Type: Cast Iron
• Loose Disc Material: Organic
• Loose Disc Size: 280 mm
• Loose Disc Spline ID: 22 mm
• Loose Disc Spline OD: 25 mm
• Loose Disc Spline Quantity: 10
• Loose Disc Type: Rigid
• Captive Disc Material: Organic
• Captive Disc Spline Quantity: 14
• Number of Bolts: 6 x M8 x 50 (1.25)
• Number of Levers: 6
• Tariff Code: 8483308090

Included Components

This clutch kit contains:

• Dual Cover – 228007717
• Loose Disc – 328018616
• Flywheel Bearing – 410002540
• Transmission Bearing – 500028440
• Transmission Bearing – 500045900

Compatibility Information

This clutch kit is suitable for the following machinery:

• Case IH / International Harvester: JX55, JX60, JX65, JX70
• Fiat: 446, 450, 466, 480, 500, 540, 55-46, 55-56, 55-66, 55-88, 55-90, 550, 570, 580, 60-46, 60-56, 60-66, 60-76, 60-88, 60-90, 60-93, 60-94, 600, 62-86, 640, 65-46, 65-56, 65-66, 65-88, 65-90, 65-93, 65-94, 666, 670, 680, 70-56, 70-66, 70-76, 70-88, 70-90, 72-86, 72-93, 72-94, 780, 80-66, 80-76, 80-88, 80-90, 82-86, 82-93, 82-94, 85-90, 88-93, 88-94
• Ford / New Holland: 4030, 4230, 4430, TD55D, TD60D, TD65B, TD65D

OEM Fitment Information

This product is compatible with the following OEM part numbers:

• Case IH / International Harvester: 5171137?, 5092787, 87689657
• Fiat: 87689657, 5171137?, 5170404?, 5154879?
• Ford / New Holland: 87689657
• L.U.K.: 228007717, 228 0077 17, 628 1034 10, 628103410

Ensure your machinery operates at peak performance with the Clutch Kit with Bearings – S.122174. Order now and experience the quality and reliability that LUK and Sparex are known for!
